13 si premium Radio harness from crutch field

[bobadim24]

So I have a 13 si no navi and going to install my navi avic-x940bt and I ordered a radio harness from crutch field was wondering if its Ganna work with the premium sound?! Or is there another harness i need

The harness from crutch field



[squiggy]

This is what the harness should look like to properly hook up to the stock amp for premium sound:



[webby]

you recall the part # on the metra harness?



[squiggy]

70-1730

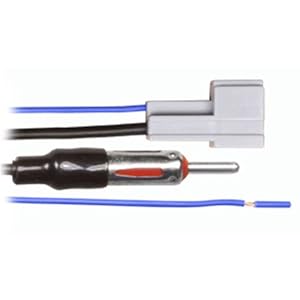

You will also need 40-HD11 for the antenna



[webby]

looks like it's a bit cheaper on amazon over crutchfield
http://www.amazon.com/Metra-70-1730-Harness-Amplified-Version/dp/B002UM9HF0
http://www.amazon.com/Metra-40-HD11-2009-Up-Antenna-Adapter/dp/B003E3MLB6



[squiggy]

Yeah, that is where I bought them from. Plus I have Prime. If I order early enough in the morning, I usually get my stuff the next day due to a warehouse being a few hours away.



[bobadim24]

Okay I got a ?? Where do you plug in the other connector...

Not the big one but the small one...



[webby]

squiggy may know. He's had his apart.



[squiggy]

The small one is the preout for the sub. Connects to stock wires in the circled one below.



[squiggy]

squiggy may know. He's had his apart.

Cross-posting!



[jmetcalfe84]

70-1730

You will also need 40-HD11 for the antenna

Where does the blue wire from this harness attach to? Do you attach it to the blue/white wire coming from the pioneer harness?



[squiggy]

Do you attach it to the blue/white wire coming from the pioneer harness?

Yep!



[Christian AC]

On my 2012 Si with Nav I don’t have the plug… help



[webby]

On my 2012 Si with Nav I don’t have the plug… help

What are you trying to do? You’re removing your 12 si oem nav unit for something else? Or?
